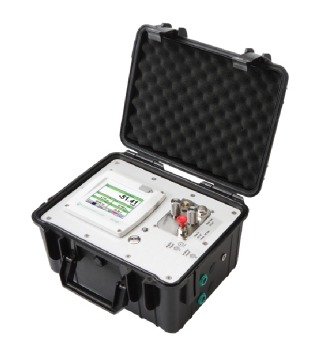

Portable Dew Point Meter with integrated data logger
The portable dew point meter with integrated, rechargeable battery has been developed especially for the end use. Besides a highly precise dew point sensor the device also contains a precise pressure sensor up to 16 bar. So in addition to the dew point in °Ctd, the temperature in °C and the line pressure in bar also further moisture parameters (% RH, mg/m3, g/m3) as well as pressure dependent measuring values (g/kg, ppm v/v, atm. dew point °C) can be calculated.

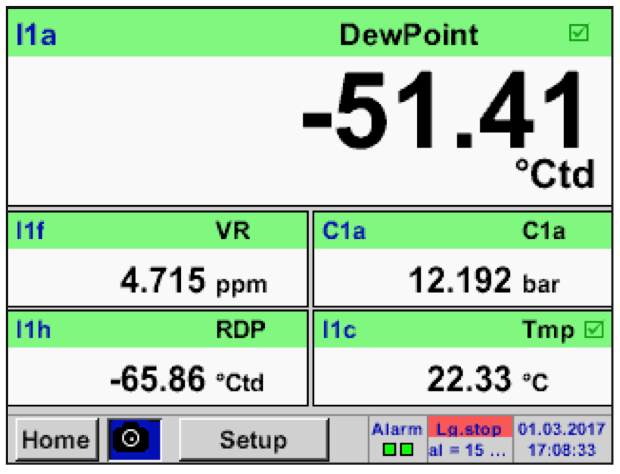

Multiple Humidity Parameters

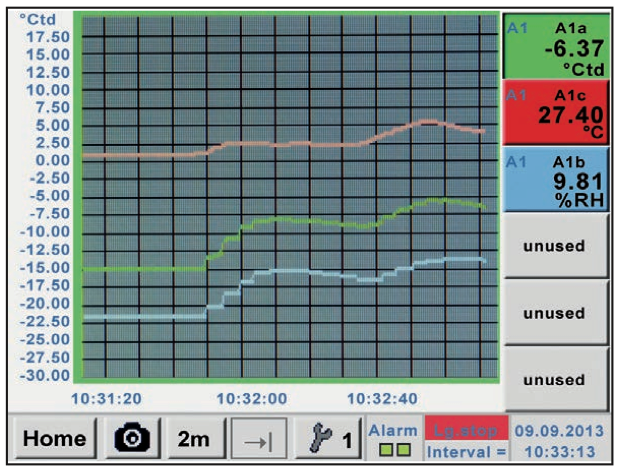

Graphic View

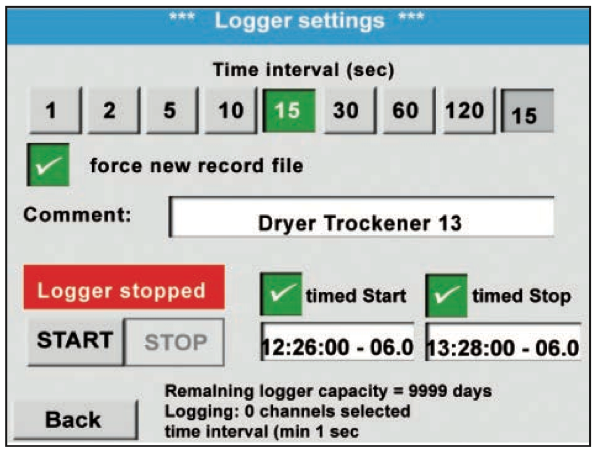

Data Logger with 100 million measure values. Logging interval is freely to set
| Measuring range | Dew Point -80...+50 °Ctd Humidity 0...100 % RH Temperature -20...70 °C Pressure 0…16 bar |
| Accuracy | ± 0.5 °Ctd at -10...+50 °Ctd Typical ± 2 °Ctd (further range) |
| Measuring Units | °Ctd, g/m3, mg/m3, ppm V/V, g/kg, °Ctd atm, % RH |
| Display | 3.5" touch panel, TFT transmissive, graphics, curves, statistics |
| Pressure range | -1...50 bar, Optional: Special version up to 350 bar |
| Operating temperature | -20...+70 °C (Medium) 0...+50 °C (Ambient) |
| Interface | USB interface |
| Data logger | 8 GB SD memory card |
| Power supply | 100 – 240 VAC/50 – 60 Hz, 12VDC – 1A Internal rechargeable Li-Ion batteries, approx. 12 hours continuous operation 4 hours charging time |
| Power supply for sensor (DP510 only) | Output voltage: 24 VDC ± 10% Output current: 120 mA in continuous operation |
| Screw-in thread | G 1/2" stainless steel |
| EMC | DIN EN 61326 |
| Dimensions | 125 x 96 x 245 mm |
| Weight | 550 grams |
