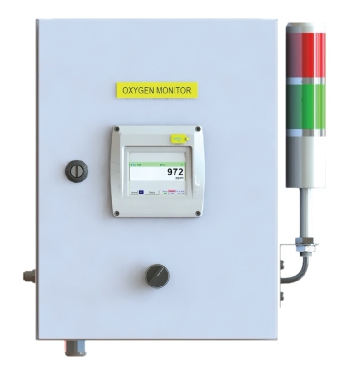

Dew Point Monitor
For stationary dew point monitoring of refrigeration or adsorption dryers. The touch screen graphic display enables an intuitive operation and shows the progress of the measured values. 2 alarm relays are available for monitoring of threshold values. Available either with a classic analogue output 4...20 mA or optionally with digital interfaces like Ethernet and RS 485 (Modbus protocol).
As a stand-alone solution the measured data stored in the optional data logger can be read-out via USB stick and evaluated by means of the software CS Basic.
Option: integrated with Dew Point Control Valve
Flange connection size 1” to 4”
| Measuring range | --80...+20 °Ctd or -20...+50 °Ctd Option: -60…+30 °Ctd |
| Sensor input | 2 digital sensor inputs |
| Display | 3.5" TFT touch screen graphic display |
| Operation pressure | -1...16 bar Optional: High pressure version available upon request |
| Operating temperature | -20…50 oC |
| Output signal | 4…20 mA Option: RS485 (Modbus-RTU) |
| Sampling air inlet | 6 mm soft tubing Optional: 6mm bulkhead hard tubing |
| Power supply | 110 - 230 VAC, 50 / 60 Hz |
| Alarm relay | 2 alarm relay output, change over contact, 250 VAC, max 3A |
| Alarm thresholds | Freely adjustable |
| Hysteresis | 2 oCtd |

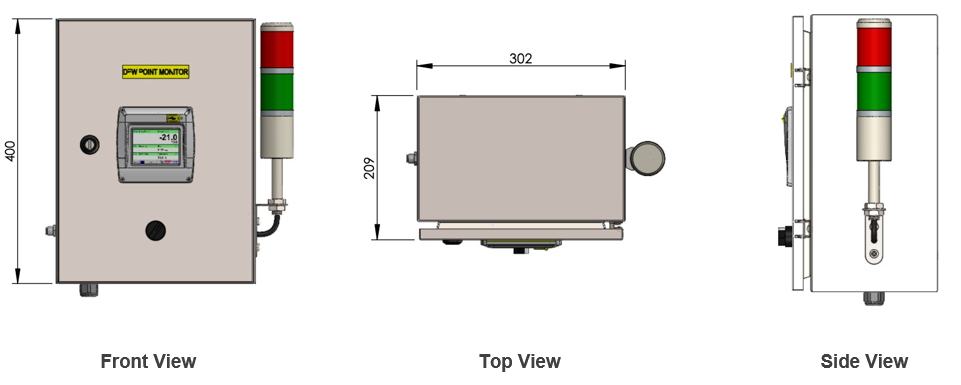

| Dimension of DS400 housing | 302 (L) x 209 (D) x 400 (H) mm |
