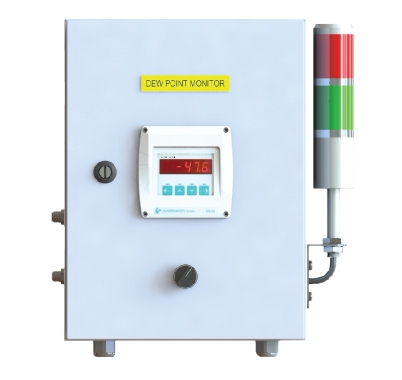

The dew point set of DS 52 with 4…20mA output and 2 alarm relay is ideal monitor for adsorption dryer -80...+20°Ctd and refrigerant dryer -20…+50°Ctd.
TThe dew point sensor FA 510 is extremely long-term stable and can be installed and removed quickly and easily under pressure by means of the screwable measuring chamber including quick coupling. The dew point set is supplied ready for plug-in, i.e. everything is completely wired. The alarm values can be freely adjusted.

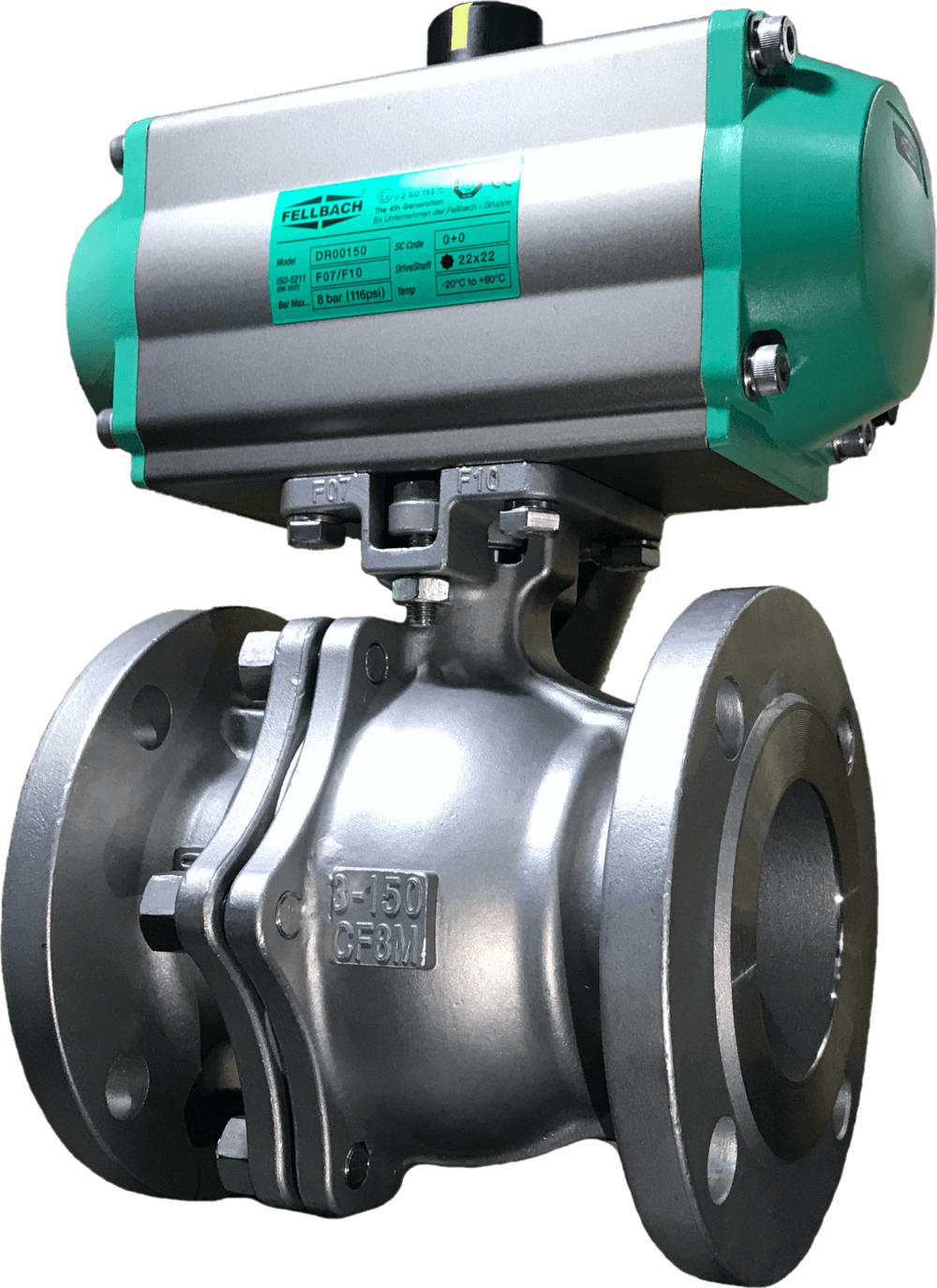

Option: integrated with Dew Point Control Valve
Flange connection size 1” to 4”
| Measuring range | -80...+20 °Ctd -20...+50 °Ctd -60…+30 °Ctd (on request) |
| Pressure range | -1...50 bar, Optional: Special version up to 350 bar |
| Sensor input | 1 x analogue input for sensors with 0...20 mA or 0/4...20 mA signal. Connectable in 2-/3 or 4-wire technology possible with 24 VDC supply |
| Display | LED red, 7-segment, 5-digit, 2 LED for alarm relay |
| Keypad | 4 keys: Enter, Back, Up and Down |
| Power supply | 230 VAC, 50/60 Hz. Optional: 24VDC or 110 VAC 50/60 Hz |
| Operating temperature | -20...+60 °C |
| Output signal | 4…20 mA |
| Alarm relay | 2 alarm relay output, change over contact, 250 VAC, max 3A |
| Alarm thresholds | Freely adjustable |
| Hysteresis | 2 oCtd |

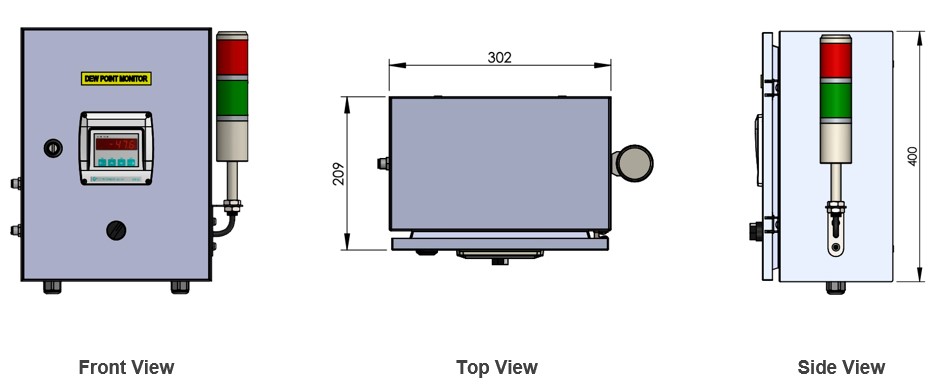

| Dimension | 302 (L) x 209 (D) x 400 (H) mm |
