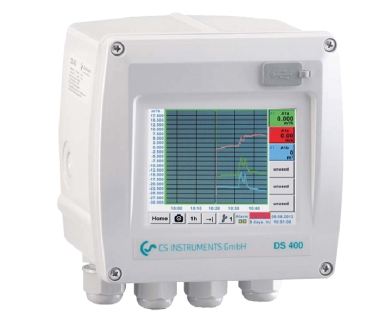

The universal and multifunction display and compressed air data logger that can measure, display and record all relevant parameters (Flow, consumption, dew point, pressure, temperature, power consumption, compressor status etc.) in a compressed air system.
The DS400 is equipped with 2 to 4 sensor inputs optionally analog, digital or mixed. 2 additional digital or analogue inputs are optionally available on request - e.g. for power meters or pressure sensors. Critical points in your processes are then displayed immediately. This reduces your reaction time and increases process and production safety levels. The compact screen recorder optionally provides a data logger with a 4 GB memory capacity.

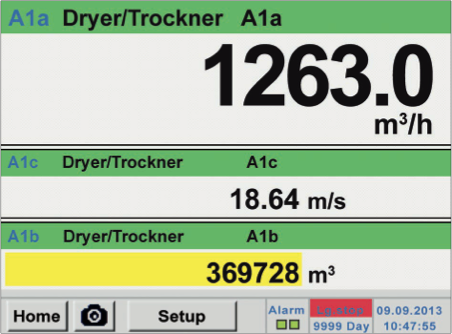

Real Time Measured Values
All measured values can be seen at a glance. Threshold exceeding are indicated in yellow colour. A “measuring site name” can be allocated to each sensor.

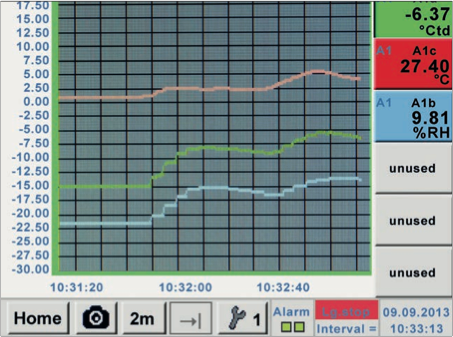

Real Time Measured Values and Graph View
In the graphic view all measured values are indicated as curves. It is possible to browse back on the time axis by a slide of the finger (without data logger maximum 24 hours, with data logger back to the start of the measurement).

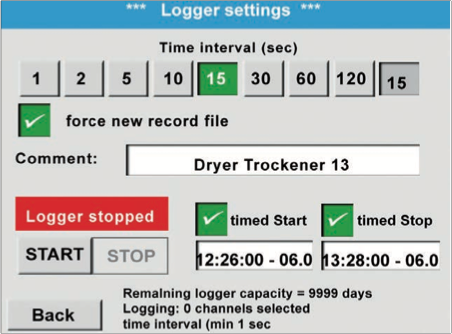

Data Logger
With the option “integrated data logger” the measured values are stored in the DS 400. The time interval can be freely set. Furthermore, there is the possibility to fix the starting time and the end time of the data recording. Read-out of the measured data via USB interface or via the optional Ethernet interface.
| Sensor Inputs | 2 / 4 (2x2) sensor inputs for analogue and digital sensors freely allocable. Digital CS sensors for dew point and consumption with SDI interface FA/VA 400 Series. Digital third-party sensors RS 485/Modbus RTU, other bus systems realizable on request. |
| Colour screen | 3.5“-Touchpanel TFT transmissive, graphics, curves, statistics |
| Interface | USB, Ethernet TCP, RS 485 Modbus RTU (Option), SDI (Serial data Interface) |
| Outputs | Outputs 2 relay (max. switching voltage: 230 VAC / 30 VDC, Switching current: min. 10mA, max. 3A) alarm management, relay freely programmable, collective alarm. Analogue output, pulse in case of sensors with own signal output looped, like e.g. VA/FA Series. |
| Power supply | 110…240VAC, 50-6-Hz |
| Power supply for sensors | Output voltage: 24 VDC ± 10% Output current: a.) Digital-Board 120mA continuous operation / channel b.) Analog-Board 120mA continuous operation for both channels Maximum output current over all channels: 280mA |
| Operating temperature | 0 – 50 °C |
| Memory card | Memory size 2 GB SD memory card standard, optionally up to 4 GB |
| Power supply | 100...240 VAC / 50-60 Hz, special version 24 VDC |
| Material | Plastic, Frontfolie Polyester |
| Dimensions of housing | Wall mount: 118 x 115 x 98 mm (W x H x D) Panel mount version : 92 x 92 x 75 mm |
| Weight | 545 g |
| Optionally | Data Logger, Memory size 4 GB SD memory card (micro SD class4) |
| Optionally | Ethernet- and RS 485 Interface (Modbus Protocol) |
| Optionally | Webserver |
