For Compressed Air & Gases

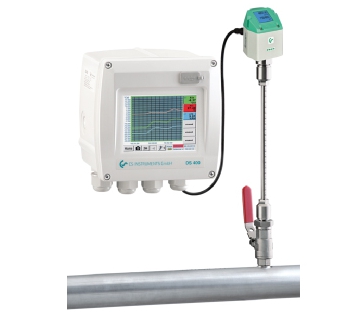

The DS 400 Flow Station has a well-established reputation for reliability in day-to-day applications. These trusted flow measurement products range from simple flow indicators to highly developed monitor and analysis system. They are great assistance in the cost accounting of individual plants or each production line. They also minimize the effort of monitoring leak rates or detecting the available power reserves in a compressor. Each factory needs compressed air, however, often it is not realized that compressed air is one of the most expensive types of energy. Therefore, the intelligent use of flow measurement DS 400 holds an enormous potential for saving energy. In most cases the user mainly concentrates on the production, i. e. on the compressors. In order to save energy very often new compressors, control systems or heat recovery systems are installed.
| Measuring range | 50 m/s, low-speed version 92.7 m/s, standard version 185 m/s, max. version 224 m/s, high-speed version |
| Measuring principle | Thermal mass flow sensor |
| Measuring parameters | Flow, consumption, flow speed and temperature |
| Measuring medium | Air and non-corrosive gases (nitrogen, argon, helium, CO2, oxygen) |
| Measuring unit | m3/h, m3/min, l/min, Nm3/h, Nm3/min, Nl/min, cfm, kg/h, kg/min, etc… |
| Operating pressure | -1...50 bar (for pressure >10 bar - order additional high-pressure protection) |
| Sensor Inputs | 2 or 4 sensor inputs for analogue and digital sensors freely allocable. Digital CS sensors for dew point and consumption with SDI interface FA/VA 400 Series. |
| Colour screen | 3.5“-Touchpanel TFT transmissive, graphics, curves, statistics |
| Interface | USB, Ethernet TCP, RS 485 Modbus RTU, SDI (Serial data Interface) |
| Alarm relay | Outputs 2 relay (max. switching voltage: 230 VAC / 30 VDC, Switching current: min. 10mA, max. 3A) alarm management, relay freely programmable, collective alarm. |
| Power supply | 110…240VAC, 50-6-Hz |
| Operating temperature | 0 – 50 °C |
| Memory card | Memory size 2 GB SD memory card standard, optionally up to 4 GB |
| Power supply | 100...240 VAC / 50-60 Hz, special version 24 VDC |
| Optionally | Data Logger, Memory size 4 GB SD memory card (micro SD class4) |
| Optionally | Ethernet- and RS 485 Interface (Modbus Protocol) |
| Dimensions of housing | Wall mount: 118 x 115 x 98 mm (W x H x D) |
| Flow meter mounting thread | G 1/2" ISO 228, NPT 1/2" |
Flow Measuring Ranges VA 500 for Compressed Air (ISO 1217:1000 mbar, 20 °C) | |||||
Inner diameter of pipe | Standard (92.7 m/s) | Max. (185.0 m/s) | High-Speed (224.0 m/s) | ||
Inch | mm | DN | m3/h | m3/h | m3/h |
1/2" | 16.1 | DN 15 | 2.5...760 (l/min) | 3.5...1516 (l/min) | 6.0...1836 (l/min) |
3/4“ | 21.7 | DN 20 | 0.3...89 | 0.4...178 | 0.7...215 |
1“ | 27.3 | DN 25 | 0.5...148 | 0.6...295 | 1.1...357 |
1 1/4“ | 36.0 | DN 32 | 0.9...280 | 1.2...531 | 2.5...644 |
1 1/2“ | 41.9 | DN 40 | 1.2...366 | 1.5...732 | 3.0...886 |
2“ | 53.1 | DN 50 | 2...600 | 2.5...1198 | 4.6...1450 |
2 1/2“ | 71.1 | DN 65 | 3.5...1096 | 5...2187 | 7...2648 |
3“ | 84.9 | DN 80 | 5...1570 | 7...3133 | 12...3794 |
4“ | 110.0 | DN 100 | 9...2645 | 12...5279 | 16...6391 |
5“ | 133.7 | DN 125 | 13...3912 | 18...7808 | 24...9453 |
6“ | 159.3 | DN 150 | 18...5560 | 25...11097 | 43...13436 |
8“ | 200.0 | DN 200 | 26...8786 | 33...17533 | 50...21230 |
10“ | 250.0 | DN 250 | 40...13744 | 52...27429 | 80...33211 |
12“ | 300.0 | DN 300 | 60...19815 | 80...39544 | 100...47881 |
