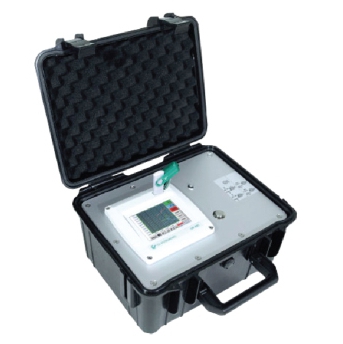

DS 400 Mobile is a mobile chart recorder for the compressed air professional. It records all relevant parameters of compressed air (Flow, consumption, dew point, pressure, temperature, power consumption, compressor load profile and etc.) up to 4 sensors. The internal memory for data recording can store up to 100 million values.

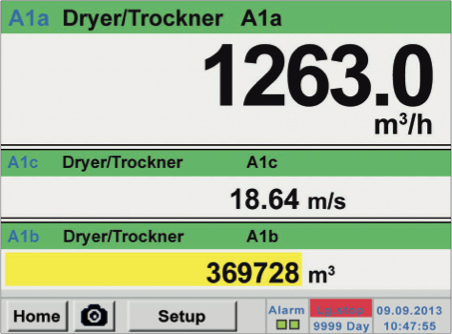

Real Time Measured Values
All measured values can be seen at a glance. Threshold exceeding are indicated in yellow colour. A “measuring site name” can be allocated to each sensor.

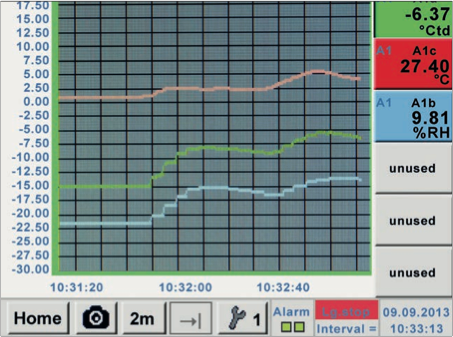

Real Time Measured Values and Graph View
In the graphic view all measured values are indicated as curves. It is possible to browse back on the time axis by a slide of the finger (without data logger maximum 24 hours, with data logger back to the start of the measurement).

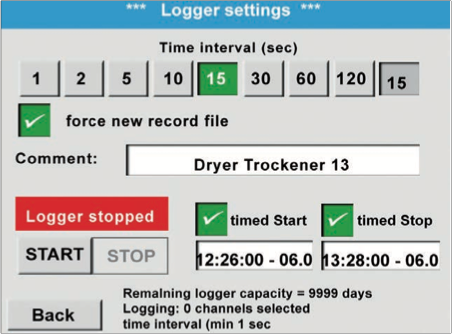

Data Logger
With the option “integrated data logger” the measured values are stored in the DS 400. The time interval can be freely set. Furthermore, there is the possibility to fix the starting time and the end time of the data recording. Read-out of the measured data via USB interface or via the optional Ethernet interface.
| Dimensions of housing | 270 x 225 x 156 mm (W x H x D) |
| Sensor Inputs | 2 or 4 sensor inputs for digital or analogue sensor signals |
| Colour screen | 3.5“-Touchpanel TFT transmissive, graphics, curves, statistics |
| Interface | USB |
| Data logger | 100 million measuring values start/stop time, measuring rate freely adjustable |
| Operating temperature | 0 – 50 °C |
| Power supply | 100...240 VAC / 50-60 Hz Internal rechargeable Li-Ion batteries, approx. 8 hours continuous operation, 4 hours charging time |
| Power supply for sensors | Output voltage: 24 VDC ± 10% |
| Memory card | Memory size 4 GB SD memory card standard |
| Material | Plastic, Frontfolie Polyester |
| Weight | 2.2 kg |
| Optionally | Ethernet- and RS 485 Interface (Modbus Protocol) |
| Optionally | Webserver |
