NG Series

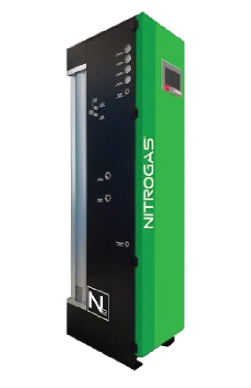

NG SERIES - Modular Nitrogen Generator

NG Series is a range of top quality, efficient and reliable modular Nitrogen generators, and current state of the art of PSA technology.

The NG series nitrogen generators minimizes obstructions to allow flows of nitrogen from few liters per minute to hundreds of cubic meter per hour. The modular structure can easily be upgraded at any time by simply adding modules to the generator. With NG you don’t need to buy nitrogen gas anymore, you can make it yourself on-site & on demand.

Key Features

  • Expendable modular adsorption column for capacity upgrade base on demand
  • PLC + 7” HMI touch screen
  • Display of real time operation status, parameters trend graph and history data
  • Energy efficient control - automatic turn down to STANDBY when no consumption
  • Integrated with oxygen sensor and
  • Integrated with nitrogen flow meter
  • Internal piping & fittings in stainless steel
  • Equipped with air inlet filters
  • Alarm & service log appearance for fast & easy maintenance & trouble shooting

Typical Application

  • Laboratory devices & instruments
  • Food packaging (MAP)
  • Gas Assisted Injection Molding (GAIM)
  • Inerting of flammable liquids
  • Prevention of dust explosions
  • Selective and wave soldering of PCBs
  • Spray painting
  • Any other application requiring small, medium flow rates of nitrogen

Option

  • Feed air compressor package
  • Sterile filter for food application
  • Pre-fabrication skid and pre-piping installation
  • High pressure cylinder filling station
  • Piping distribution from compressor to point of use

Advantages of Modular Nitrogen Generators

Expendable

2 production capacity can be easily adjusted directly on site by simple module additions without any skilled personnel.

Ease of Installation

Compact dimensions for installations even in small or low ceiling spaces of your production facility.

Save Space

Modular design allows for a smaller footprint and if starting with one or two modules, additional units can be added when required

Adjustable Purity

The units offer from 95 to 99.999% percent nitrogen purity to meet your quality requirements

Plug & Play

roduct gas is ready to deliver to use when a supply of dry compressed air can be connected.

Monitoring

Feed air quality are continuously monitored to avoid poor quality air entering the machine to cause damage, making sure your investment is protected.

Convenience

Hassle free. No more changing of cylinders or dewar. No more administration costs.

Industry 4.0

RS485 Modbus interface is ready to connect user monitoring system such as Scada, BMS, DCS and etc…

Technical Data

Technology EmployPressure Swing Adsorption
Controlled systemPLC
Nitrogen Purity97 – 99.999%
Capacity1 – 100 Nm3/h
Inlet Air PressureMin. 6 – max. 10 bar
Outlet PressureInlet pressure minus 1 bar (+/- 0.5)
Product Dew Point-35°C PDP (+/- 5)
Operating Temperature5 – 55 oC
Electrical Supply230V / 50Hz / 1Ph
Noise Level<75 dB

Performance Data

Model

Inlet  Pressure

Flow Rate vs Purity

Connection

Dimension

Weight

Bar(g)

10ppm

100ppm

500ppm

0.1%

0.5%

1%

2%

3%

Inlet

Outlet

mm

kg

NG5

7

0.4

1.0

1.3

2.0

3.6

4.4

5.8

6.7

1"

1/2"

400x600x1190

139

9

0.4

1.0

1.3

2.7

4.8

6.1

7.7

9.2

NG10

7

2.1

4.0

5.7

6.4

9.0

10.0

11.7

13.6

1"

1/2"

400x700x1906

195

9

3.3

5.4

7.6

8.3

10.8

12.4

15.0

16.8

NG20

7

4.2

8.0

11.4

12.8

18.0

20.0

23.4

27.2

1"

1/2"

400x900x1906

295

9

6.6

10.8

15.2

16.6

21.6

24.8

30.0

33.6

NG30

7

6.3

12.0

17.1

19.2

27.0

30.0

35.1

40.8

1"

1/2"

400x1100x1906

394

9

9.9

16.2

22.8

24.9

32.4

37.2

45.0

50.4

NG40

7

7.9

15.0

21.4

24.1

33.8

37.6

44.0

51.1

1"

1/2"

400x1300x1906

494

9

12.4

20.3

28.6

31.2

40.6

46.6

56.4

63.2

NG50

7

9.8

18.6

26.5

29.8

41.9

46.5

54.4

63.2

1"

1/2"

400x1500x1906

594

9

15.3

25.1

35.3

38.6

50.2

57.7

69.8

78.1

NG60

7

11.6

22.1

31.5

35.3

49.7

55.2

64.6

75.1

1"

1/2"

400x1700x1906

694

9

18.2

29.8

42.0

45.8

59.6

68.4

82.8

92.7

NG70

7

13.2

25.2

35.9

40.3

56.7

63.0

73.7

85.7

1"

1/2"

400x1900x1906

794

9

20.8

34.0

47.9

52.3

68.0

78.1

94.5

105.8

1. Indicated Nitrogen flow rates are in Nm3/h and valid for generator operating at atmospheric conditions +20°C, 1013 mbar and 60% RH, 7 bar(g) inlet feed air pressure. Definition of Nm3 based on reference conditions 0°C, 101,325 kPa(a) and dry basis. For performances in other conditions please contact directly the manufacturer. The manufacturer reserves the right of modifying present data without any prior advice. Please always report to his indications.

2. Nitrogen purity is indicated as inert gas content at the generator outlet.

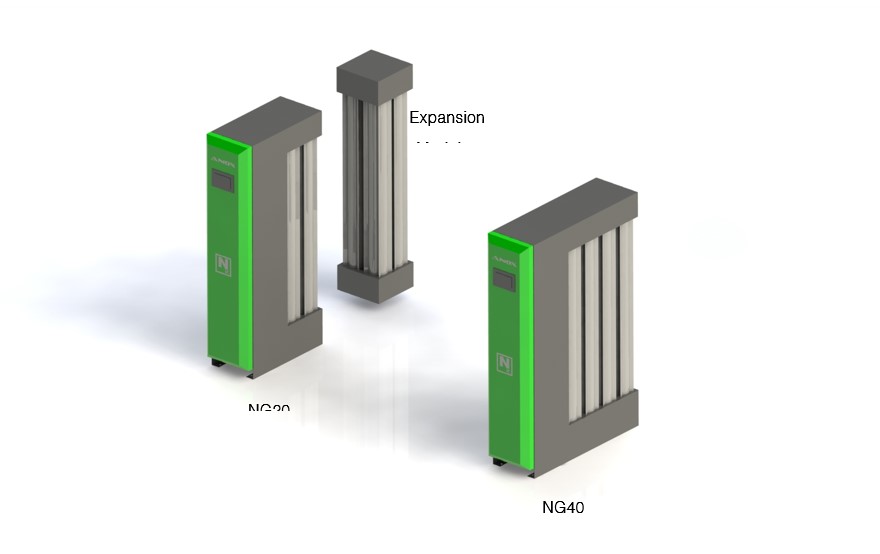

Your SUSTAINTABLE & EXPENDABLE Nitrogen Generation SOLUTION

Scalable

Up to 7 modules can be added to each single NG unit in less than a shift, increasing nitrogen production capacity with minimal downtime.
