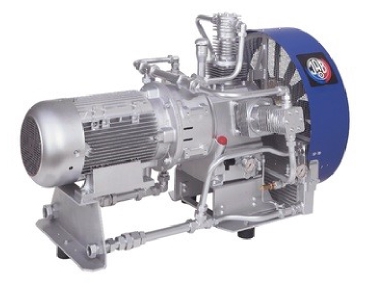

JAB Compressors are own developments with the knowledge we gained during the construction of our compressors with a performance up to 350 Bar. The main characteristics of these machines are oil pressure lubrication, oil pressure control, oil pressure monitoring, shut down in case of lack of oil, oil and water separation with automatic discharge and condensate separation as well as very low noise emitting values.

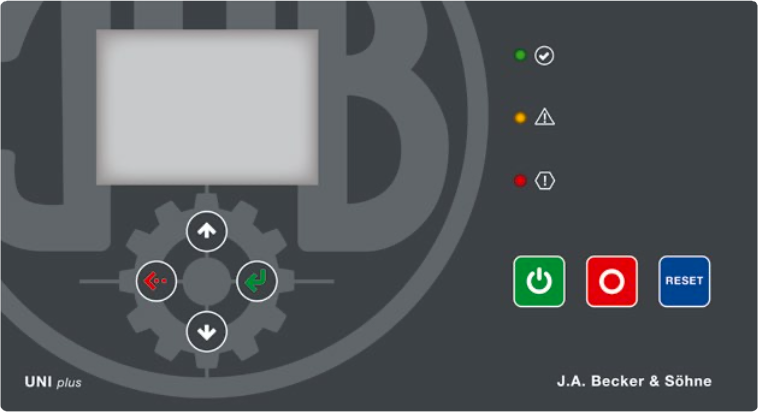

The JABcommand UNI plus fulfills all requirements for electric controls regarding intuitive operating concepts and additional networking possibilities.
The focus mainly lies on monitoring and safety functions, on automated operation of the unit and on optimization of service as well as maintenance processes.
Model | Inlet Pressure | Volume Flow Rate | Max. Operating Pressure | Pressure Stage | Electrical Motor | |||
Bar | l/min | m3/h | cfm | Bar | PSI | kW | ||
SV 125/40 N | 0.1 | 144 | 8.6 | 5.1 | 40 | 580 | 2 | 3 |
0.3 | 177 | 10.3 | 6.0 | |||||
SV 245/40 N | 0.1 | 252 | 15.1 | 8.9 | 40 | 580 | 2 | 4.8 |
0.3 | 298 | 17.9 | 10.5 | |||||
SV 500/40 N | 0.1 | 545 | 32.7 | 19.2 | 40 | 580 | 2 | 11 |
0.3 | 644 | 38.6 | 22.7 | |||||
SV 1100/40 N | 0.1 | 1190 | 71.4 | 42.0 | 350 | 5076 | 3 | 22 |
0.3 | 1407 | 84.4 | 49.7 | |||||
SV 2400/40 N | 0.1 | 2565 | 153.9 | 90.6 | 350 | 5076 | 3 | 37 |
0.3 | 3032 | 181.9 | 107.1 | |||||
SV 225/350 N | 0.1 | 224 | 13.4 | 7.9 | 350 | 5076 | 3 | 7.5 |
0.5 | 305 | 18.3 | 10.8 | |||||
SVC 450/350 N | 0.1 | 513 | 30.8 | 18.1 | 350 | 5076 | 3 | 15 |
0.4 | 653 | 39.2 | 23.1 | |||||
SVD 700/350 N | 0.1 | 776 | 46.6 | 27.4 | 350 | 5076 | 4 | 22 |
0.4 | 988 | 59.3 | 34.9 | |||||
SVB 1100/350 N | 0.1 | 1200 | 72.0 | 42.4 | 350 | 5076 | 4 | 30 |
0.3 | 1430 | 85.8 | 50.5 | |||||
SVB 1300/350 N | 0.1 | 1500 | 90.0 | 53.0 | 350 | 5076 | 4 | 45 |
0.3 | 1807 | 108.4 | 63.8 | |||||
SVB 1300/350 N1 | 0.5 | 1816 | 109 | 64.1 | 350 | 5076 | 4 | 45 |
0.9 | 2416 | 145 | 85.3 | |||||
V 5635/350 N | 5.5 | 154 | 9.2 | 5.4 | 350 | 5076 | 2 | 4 |
V 5635/350 N | 5.5 | 205 | 12.3 | 7.2 | 350 | 5076 | 2 | 5.5 |
V 5635/350 N | 5.5 | 6100 | 30 | 17.7 | 350 | 5076 | 3 | 7.5 |
