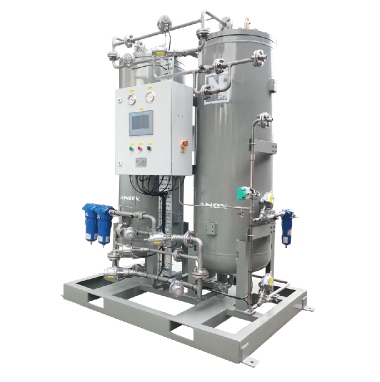

NX SERIES NITROGEN GENERATOR

The ANOX Gas Generation's NX series nitrogen generator is amongst the best in its class of pressure swing adsorption (PSA) based nitrogen gas generator systems. Harnessing the latest air separation technologies, ANOX delivers high quality, industrial grade nitrogen gas, at flow rates & purities that can meet the demands of any industry.

Regardless of your application, an ANOX PSA nitrogen generator provides an energy efficient, low cost alternative to bulk nitrogen supply methods. Various models of NX models offered by ANOX from small to large flow rates in order to meet specific nitrogen needs.

Key Features

Integrated with HMI Display of real time operation status, parameters trend graph and history data
Energy efficient control - automatic turn down to STANDBY when no consumption
Integrated with oxygen sensor ensure nitrogen purity meet end process requirement
Integrated with nitrogen flow sensor for demand monitoring
Integrated with dew point sensor for inlet air quality monitoring
Internal piping & fittings in stainless steel
Equipped with air inlet filters and product gas filter
Alarm & service log appearance for fast & easy maintenance & trouble shooting
With local DOSH approval for adsorption / pressure vessel (ASME)

Typical Application

Tank blanketing
Modified Atmosphere Packaging (MAP)
Gas Assisted Injection Molding (GAIM)
Heat treatment of ferrous & non-ferrous metals
Inerting of flammable liquids
Laser cutting
Pest control and fire safety in silos (e.g. corn, powdered food)
Prevention of dust explosions
Reflow and wave soldering of PCBs
Spray painting
Any other application requiring small, medium and big flow rates of nitrogen

Option

Feed air compressor package
High pressure nitrogen booster
High pressure cylinder filling station
Piping distribution from compressor to point of use

Specification

Controlled system	PLC
Nitrogen Purity	95 – 99.999%
Capacity	1 – 1000 Nm3/h
Inlet Air Pressure	Min. 6 – max. 10 bar
Outlet Pressure	Inlet pressure minus 1 bar (+/- 0.5)
Product Dew Point	-35°C PDP (+/- 5)
Operating Temperature	5 – 55 oC
Electrical Supply	230V / 50Hz / 1Ph
Noise Level	< 75 dB

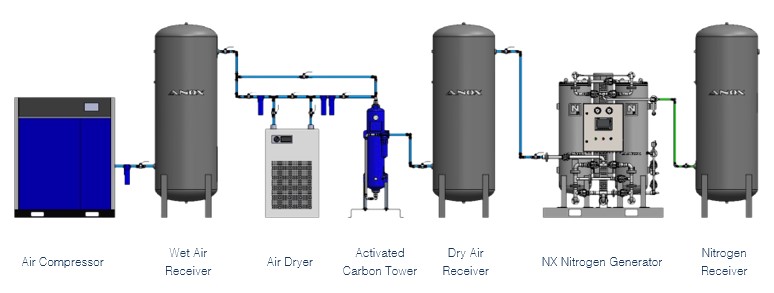

Typical Nitrogen Generation System Installation

Performance Data

Model	N2 Flowrate – Nm³/h at indicated vary N2 purities					Dimensions	Weight
Model	99.0%	99.5%	99.9%	99.99%	99.999%	(LxWxH) mm	(kg)
NX5	25	20	13	7	4	1000 x 600 x 1500	350
NX10	28	18	15	10	5	1060 x 870 x 1900	500
NX15	64	52	33	19	11	1060 x 1000 x 2050	800
NX20	83	68	43	25	14	1200 x 1000 x 2200	1200
NX30	105	86	55	31	18	1600 x 1200 x 2400	1600
NX40	128	105	67	38	21	1600 x 1200 x 2470	2000
NX50	190	155	98	56	32	1600 x 1200 x 2470	2000
NX60	217	177	113	64	36	2100 x 1300 x 2770	2500
NX80	256	208	133	77	42	2200 x 1400 x 2850	2800
NX100	393	320	204	118	64	2300 x 1600 x 2660	3200
NX125	452	369	235	134	75	2500 x 2000 x 2800	3500
NX150	505	412	262	152	82	2800 x 2000 x 3300	3800
NX200	636	518	330	191	104	3000 x 2100 x 3500	4400
NX250	883	720	458	265	144	3400 x 2260 x 3700	5800
NX300	1011	824	524	303	165	3800 x 2400 x 3400	6400
NX350	1135	926	589	341	185	4100 x 2050 x 4000	7000
NX400	1266	1032	657	390	206	4800 x 2400 x 4000	8000
