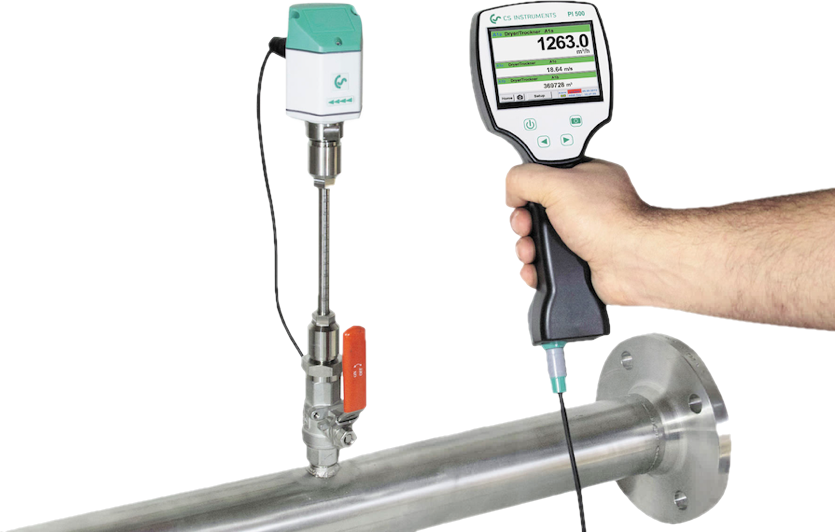

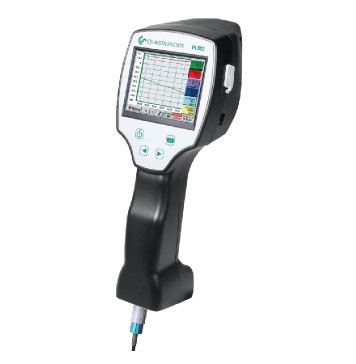

Universal sensor inputs ensure easy and convenient connectivity with all conventional industrial transducers. In addition, the device is intuitive to operate using an easy-to-read 3.5" touchscreen. The new PI 500 is an all-purpose handheld measuring instrument for many applications in industry such as:

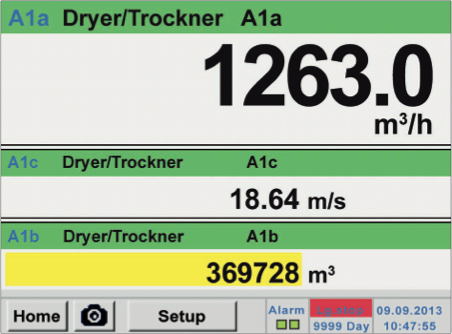

Real Time Measured Values
All measured values can be seen at a glance. Threshold exceeding are indicated in yellow colour. A “measuring site name” can be allocated to each sensor.

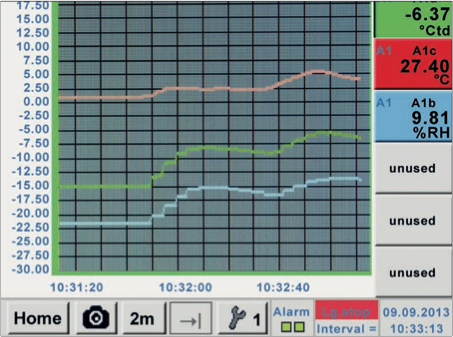

Real Time Measured Values and Graph View
In the graphic view all measured values are indicated as curves. It is possible to browse back on the time axis by a slide of the finger (without data logger maximum 24 hours, with data logger back to the start of the measurement).

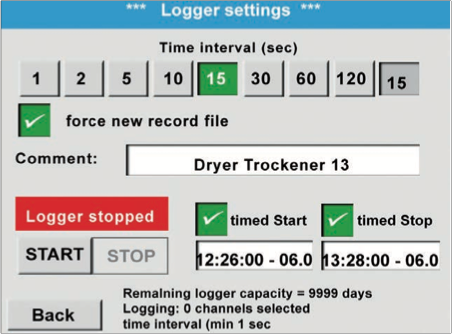

Data Logger
With the option “integrated data logger” the measured values are stored in the DS 400. The time interval can be freely set. Furthermore, there is the possibility to fix the starting time and the end time of the data recording. Read-out of the measured data via USB interface or via the optional Ethernet interface.
| Sensor Inputs | For connection of pressure sensors, temperature sensors, clamp-on ammeters, third party sensors with 4...20mA, 0-10 V, Pt 100, Pt 1000 |
| Colour screen | 3.5“-Touchpanel TFT transmissive, graphics, curves, statistics |
| Interface | USB |
| Data logger | 100 million measuring values start/stop time, measuring rate freely adjustable |
| Operating temperature | 0 – 50 °C |
| Power supply | 100...240 VAC / 50-60 Hz Internal rechargeable Li-Ion batteries, approx. 8 hours continuous operation, 4 hours charging time |
| Power supply for sensors | Output voltage: 24 VDC ± 10% Output current: 120 mA continuous operation |
| Memory card | Memory size 4 GB SD memory card standard |
| Material | Plastic, Frontfolie Polyester |
| Weight | 450 kg |
| Dimensions | 82 x 96 x 245 mm |
